MX-5 Bushings, harden rubber , MK4 rear 6 pieces
As a registered user you can add the item to your watchlist and you will be informed as soon as the item is available again.
- Mazda MX-5 MK4 & MK4RF
- Item weight: 1,24kg
IL Motorsport Complete set of bushes for the rear steering knuckle ND0-301646
This set of bushes developed and assembled by IL Motorsport is designed for use on fast roads. Whether you are a daily user or a sporty, ambitious driver, this set will significantly improve the handling, steering behavior, road holding and stability of your MK4 and further enhance the already captivating MX5 driving experience. The ride quality and ride comfort are also still excellent, so you don't have to make any compromises when choosing our complete set of bushes. The sensitive tuning of the rubber compound for the individual bushes achieves a very good compromise between sporty performance and pleasant residual comfort. Fitting is no more complicated than replacing the original bushes.
This 6-piece set is not available separately from Mazda and contains all the necessary bushes for a successful rear steering knuckle replacement:
2 x Upper and lower front wishbone bushes (pillow ball type)
1 x Lower shock absorber bushes
1 x bushes between hub and rear track arm
1 x bushes for the rear lower wishbone
1 x rear upper wishbone bushes
The 2 upper and lower front wishbone bushes are specially manufactured in a reinforced pillow ball design and can withstand the forces that occur in this area in particular. Previously, the only option was to replace the entire rear hub assembly (at a cost of about 750 euros per side plus labor), which has the same problematic bushings and is therefore likely to fail again. Well, not anymore. IL Motorsport offers you a long-lasting, high-performance and much more cost-effective solution with this complete bushing set to make the rear axle of your ND clean and stable again and to adjust the wheel guidance precisely.

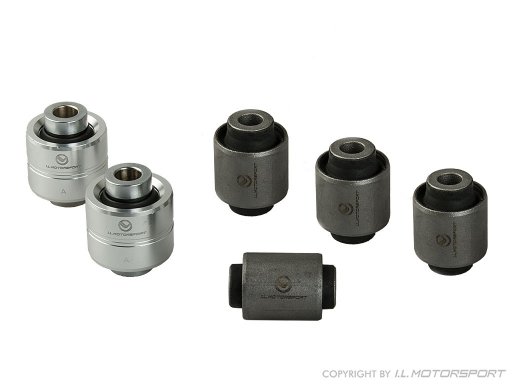

We supply a complete set of bushes for the rear steering knuckle (6 bushes)

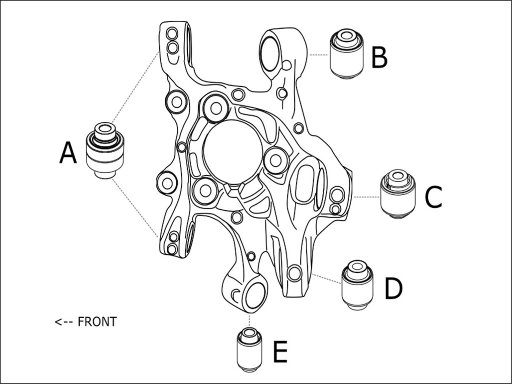

The position of the individual bushes is shown in the diagram
Images may vary and are for illustration purposes only
Suitable for all MX-5 MK4 & MK4RF models, 2015>
