MX-5 Fuel Pump MK1 1.8 1994–1998

MX-5 Fuel Pump MK1 1,6 & 1.8 1989–1998

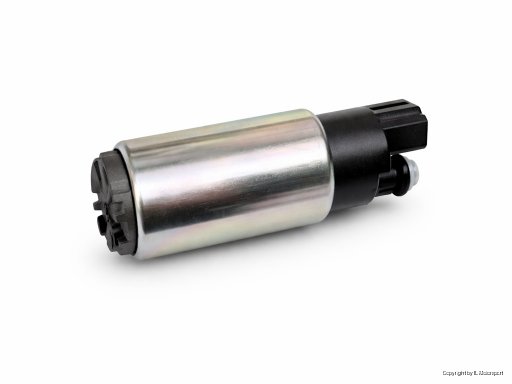

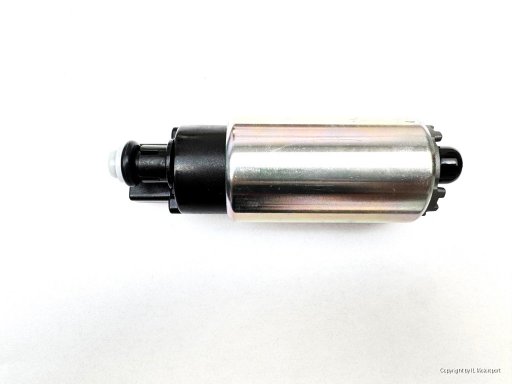

The fuel pump with reference part number BPE8-13-350 is an aftermarket replacement part specifically designed as an electric in-tank fuel pump for the classic Mazda MX-5 / Miata from model years 1989–1998.
The pump is placed directly on the fuel dispenser unit.

Function:
Electric fuel pump located inside the tank, ensuring a constant and reliable fuel supply to the engine.

This fuel pump can be replaced plug & play with the existing in-tank fuel pump and installed using the original mounting hardware.

Location:
In-tank pump system – installed directly inside the fuel tank.

Reliability:
Designed for long-lasting performance and original driving operation for the intended MX-5 models.

The fuel pump is a critical component of your roadster’s fuel supply system. It delivers fuel from the tank to the injectors or fuel injection system, ensuring stable engine operation. A worn or defective pump can cause starting problems, loss of performance, or even engine misfires.

Technical Data (typical/reference values)

Operating voltage: approx. 12 – 13.5 V DC (powered by vehicle battery)

Flow rate: approx. 100 – 130 l/h ( 1.5 – 2 l/min) at operating pressure (~3 bar)

Operating pressure: approx. 3.0 – 3.5 bar (standard for MPI injection systems)

Installation location: Inside the fuel tank (“in-tank pump system”)

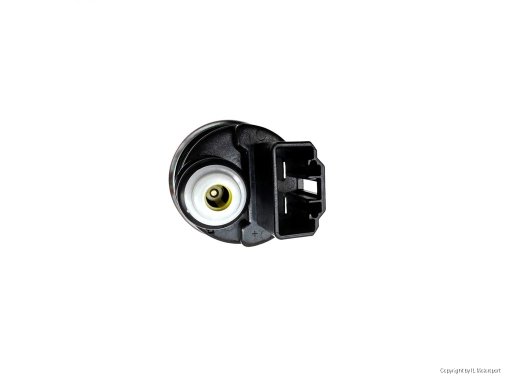

Connection: Standard 2-pin power connector + fuel line connections
