MX-5 Thermostat controlled oil cooler set with Spal fan
NA0-301339
493,17 €
Prices incl. VAT* , plus Shipping cost
Stock:
available
Delivery time: 1 up to 3 days to Germany
Delivery time for other countries differs
Delivery time for other countries differs
- Mazda MX-5 TYP MK1 1989 - 1998
- Item weight: 6kg

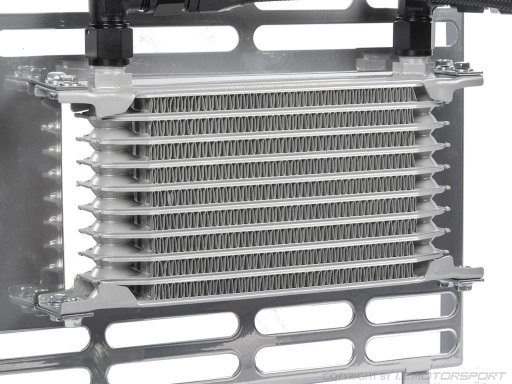

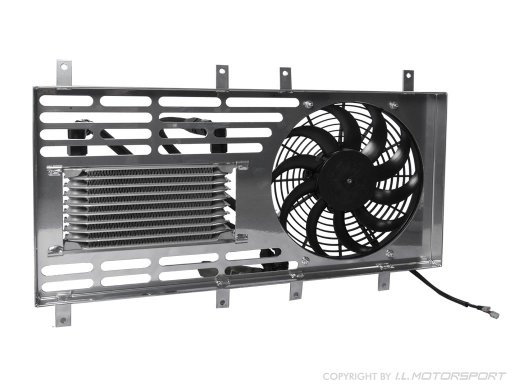

We have once again upgraded our well-known cooler systems for the oil circuit. We offer the new oil cooler sets completely pre-assembled with a high-performance fan from Spal. Where the serial fan stops blowing at 800m³/h, these high performance fan engines just start to get warm. With a peak performance of 1630m³/h per fan, the engines have twice as much power as the original in your vehicle. The new 9-row oil cooler has a net size of 18x5x12cm and is mounted behind the water cooler to save space.

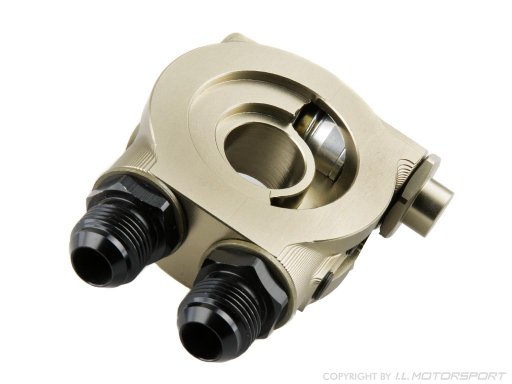

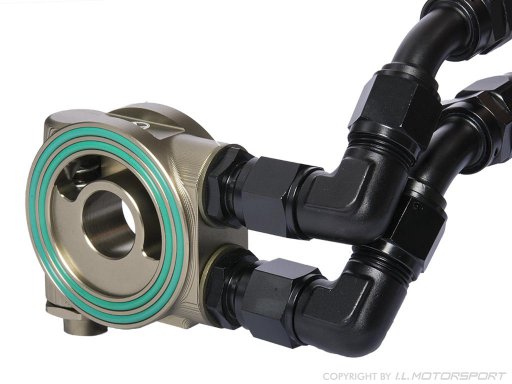

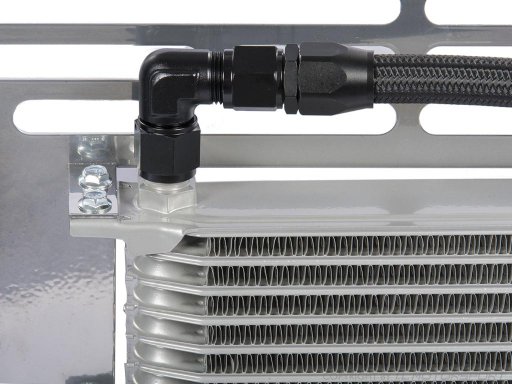

The oil cooler and hose connections are equipped with Dash 10 threads. Mounted on a super light powder-coated aluminum plate and well positioned behind the water cooler a good cooling performance is still guaranteed. The new oil filter adapters, are made of AL6061 with very high effort and high-end precision CNC machining.
The integrated thermostat allows the optimal control of the oil temperature of your MX-5 engine.
The opening temperature of the thermostat is 70° Celsius.
Only when the operating temperature is reached, the oil is then passed through the oil cooler.
The working range of the thermostat is specified as 70°Celsius - 83° Celsius.
We have the new systems with and without thermostat in our assortment suitable for all MX-5 MK1

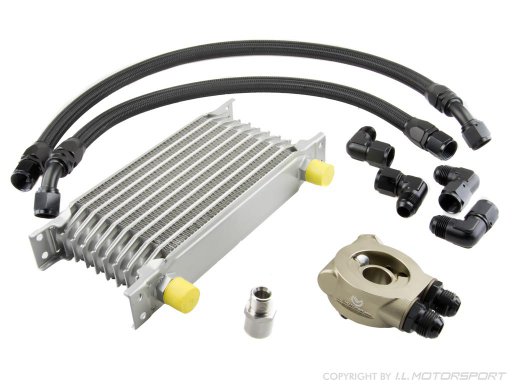

This set is specially designed for Mazda MX-5 TYPE MK1 It contains a gap fan, a super light aluminium plate silver anodized with a noble finish, an oil cooler and mounting accessories. The kit is delivered pre-assembled and ready to install. The kit can be easily mounted in combination with the I.L. Aluminium Cooler 50mm (braid thickness 42mm) or the original cooler.
Please note:
For the installation of our oil cooler kit we recommend the intake manifold support specially developed by IL Motorsport. This support enables a smooth installation and makes it easier to replace the oil filter when changing the oil.
The article numbers are as follows:
NAB-5170-19
MX-5 suction bridges support , MK1, MK2, MK2,5 1,9 Ltr. Mazda MX-5 TYPE MK1, MK2, MK2,5 1989 - 2005 1.9
Or
NAB-5170-16
MX-5 intake manifold support 1.6l Mazda MX-5 TYPE MK1, MK2, MK2,5 1989 - 2005 1.6l
Please note:
Version without thermostat !!!
Note:
The high performance fan with oil cooler is not compatible with the radiator
NA0-5052 MX-5 Aluminium water cooler 60mm (braid thickness 50mm)
