MX-5 Thermostat controlled oil cooler set with Spal fan
NB0-301341
Stock:
temporarily unavailable
As a registered user you can add the item to your watchlist and you will be informed as soon as the item is available again.
- Mazda MX-5 Typ MK2 & MK2,5 1998 - 2005 , only 1,8 Ltr. Version
- Item weight: 6kg
We have once again upgraded our well-known cooler systems for the oil circuit. We offer the new oil cooler sets completely pre-assembled with a high-performance fan from Spal. Where the serial fan stops blowing at 800m³/h, these high performance fan engines just start to get warm. With a peak performance of 1630m³/h per fan, the engines have twice as much power as the original in your vehicle. The new 9-row oil cooler has a net size of 18x5x12cm and is mounted behind the water cooler to save space.

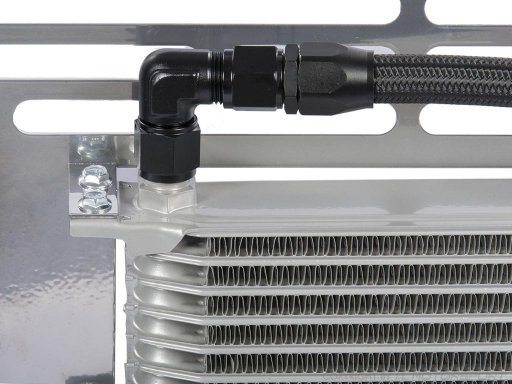

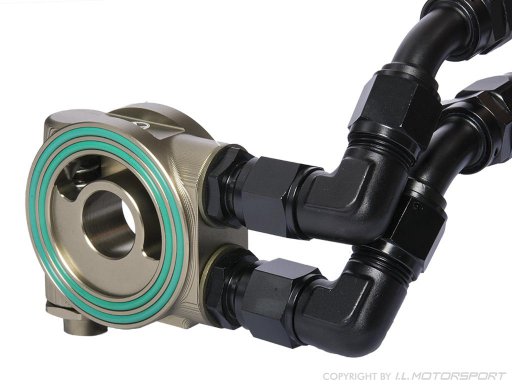

The oil cooler and hose connections are equipped with Dash 10 threads. Mounted on a super light powder-coated aluminum plate and well positioned behind the water cooler a good cooling performance is still guaranteed. The new oil filter adapters with thermostat, are made of AL6061 with very high effort and high-end precision CNC.
The integrated thermostat allows the optimal control of the oil temperature of your MX-5 engine.
The opening temperature of the thermostat is 70° Celsius.
Only when the operating temperature is reached, the oil is then passed through the oil cooler.
The working range of the thermostat is specified as 70°Celsius - 83° Celsius.
We have the new systems with and without thermostat in our range suitable for all MX-5 NB & NBFL models.
This set is especially designed for the Mazda MX-5 TYPE NB & NBFL with 1,8 Ltr. engine vehicles from 1998 to 2005. It contains a gap fan, an ultra light aluminum plate silver anodized with a super finish, an oil cooler and mounting accessories. The kit comes pre-assembled. The kit can be easily mounted in combination with the I.L. aluminium cooler 50mm (braid thickness 42mm) or the original cooler.
Please note:
For the assembly of our oil cooler kit we recommend the specially developed IL Motorsport intake manifold support. This support enables a smooth installation and makes it easier to replace the oil filter when changing the oil.
The article numbers are as follows:
NAB-5170-19
MX-5 suction bridges support , NA, NB, NBFL 1,9 Ltr. Mazda® MX-5 TYPE NA, NB, NB/FL 1989 - 2005 1.9
Or
NAB-5170-19
MX-5 suction bridges support , MK1, MK2, MK2,5 1,9 Ltr. Mazda MX-5 TYPE MK1, MK2, MK2,5 1989 - 2005 1.9
Please note:
Version with thermostat!!!
The kit is only suitable for vehicles without air conditioning & 1,8 Ltr. engine !!!
Note:
The I.L. high performance fan with oil cooler is not compatible with NB0-5052 MX-5 Performance aluminum water cooler 60mm (braid thickness 50mm)
The oil cooler and hose connections are equipped with Dash 10 threads. Mounted on a super light powder-coated aluminum plate and well positioned behind the water cooler a good cooling performance is still guaranteed. The new oil filter adapters with thermostat, are made of AL6061 with very high effort and high-end precision CNC.
The integrated thermostat allows the optimal control of the oil temperature of your MX-5 engine.
The opening temperature of the thermostat is 70° Celsius.
Only when the operating temperature is reached, the oil is then passed through the oil cooler.
The working range of the thermostat is specified as 70°Celsius - 83° Celsius.
We have the new systems with and without thermostat in our range suitable for all MX-5 NB & NBFL models.
This set is especially designed for the Mazda MX-5 TYPE NB & NBFL with 1,8 Ltr. engine vehicles from 1998 to 2005. It contains a gap fan, an ultra light aluminum plate silver anodized with a super finish, an oil cooler and mounting accessories. The kit comes pre-assembled. The kit can be easily mounted in combination with the I.L. aluminium cooler 50mm (braid thickness 42mm) or the original cooler.
Please note:
For the assembly of our oil cooler kit we recommend the specially developed IL Motorsport intake manifold support. This support enables a smooth installation and makes it easier to replace the oil filter when changing the oil.
The article numbers are as follows:
NAB-5170-19
MX-5 suction bridges support , NA, NB, NBFL 1,9 Ltr. Mazda® MX-5 TYPE NA, NB, NB/FL 1989 - 2005 1.9
Or
NAB-5170-19
MX-5 suction bridges support , MK1, MK2, MK2,5 1,9 Ltr. Mazda MX-5 TYPE MK1, MK2, MK2,5 1989 - 2005 1.9
Please note:
Version with thermostat!!!
The kit is only suitable for vehicles without air conditioning & 1,8 Ltr. engine !!!
Note:
The I.L. high performance fan with oil cooler is not compatible with NB0-5052 MX-5 Performance aluminum water cooler 60mm (braid thickness 50mm)
